Documentation for Managed Azure Networking monitoring

The purpose of this document is to list and document currently supported services for Azure Network monitoring and explain the overall design.

Overall design

All monitoring templates will be deployed in a dedicated Resource Group, per Azure Subscription.
Resource Group default name: RG-AMS-Monitoring-001
Every Azure Subscription with monitored resources will have dedicated Resource Group
Every Azure Subscription will have dedicated Action Group
Action Group default name: AG-AMS-Monitoring-001
Action Group default short name: AMS-Monitor
For every monitored resource, an Alert Rule will be created per alert type.

Example: Azure Event Hub has 5 different alert types, thus 5 alert rules will be created.

Resource Health Alerts are created per resource type, per subscription.

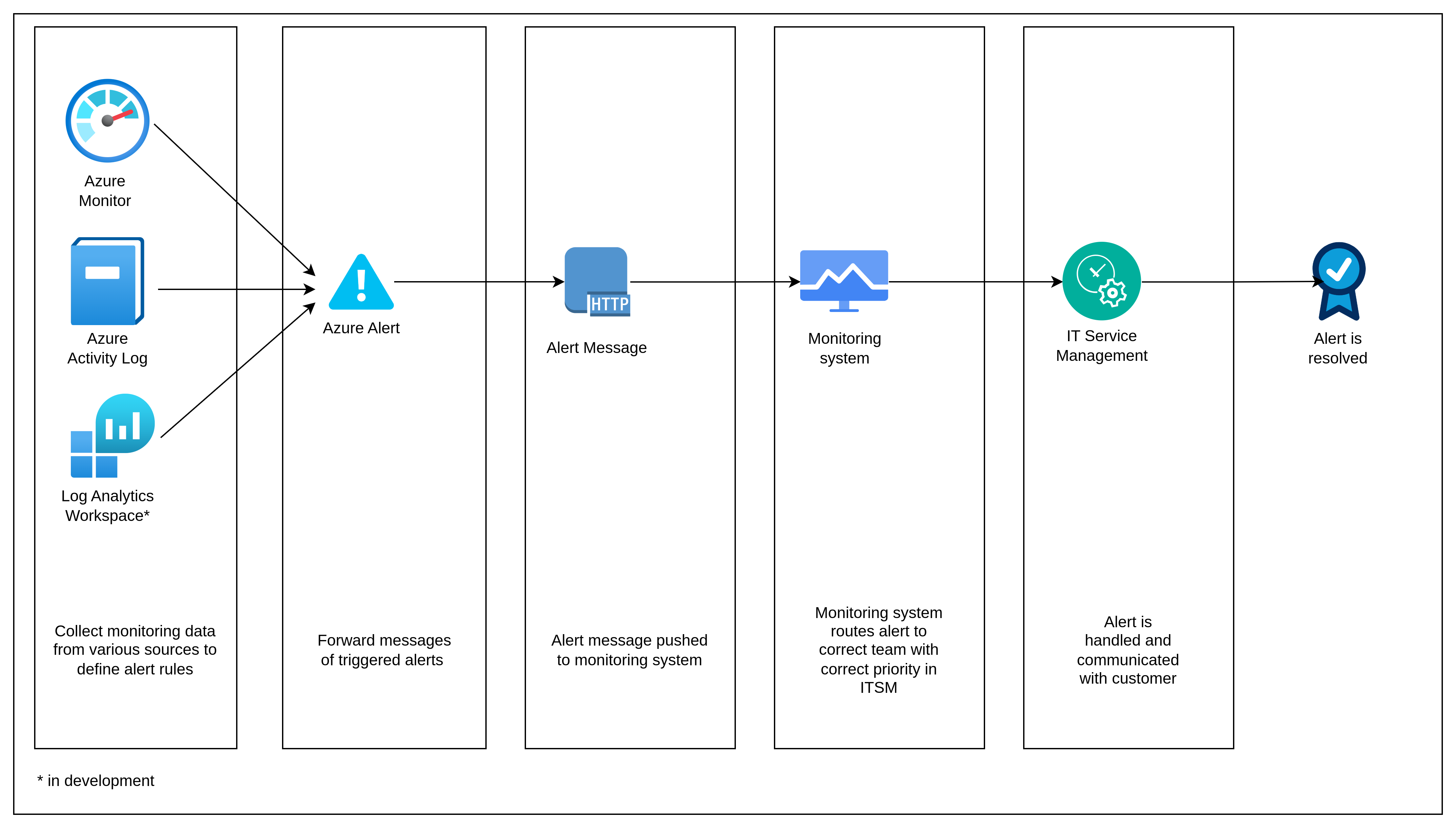

Alert flow

List of supported resource types

Select any of the links below to list the monitoring templates deployed for the resource.

Azure Application Gateway
Azure Network Connections
Azure DNS Private Zones
Azure DNS Zones
Azure Firewall
Azure Bastion Hosts
Azure Express Route Circuits
Azure Express Route Ports
Azure Front Doors
Azure Load Balancers
Azure Network Security Groups
Azure Public IP Addresses
Azure Route Tables
Azure Traffic Manager Profiles
Azure Virtual Network Gateways
Azure Virtual Networks
